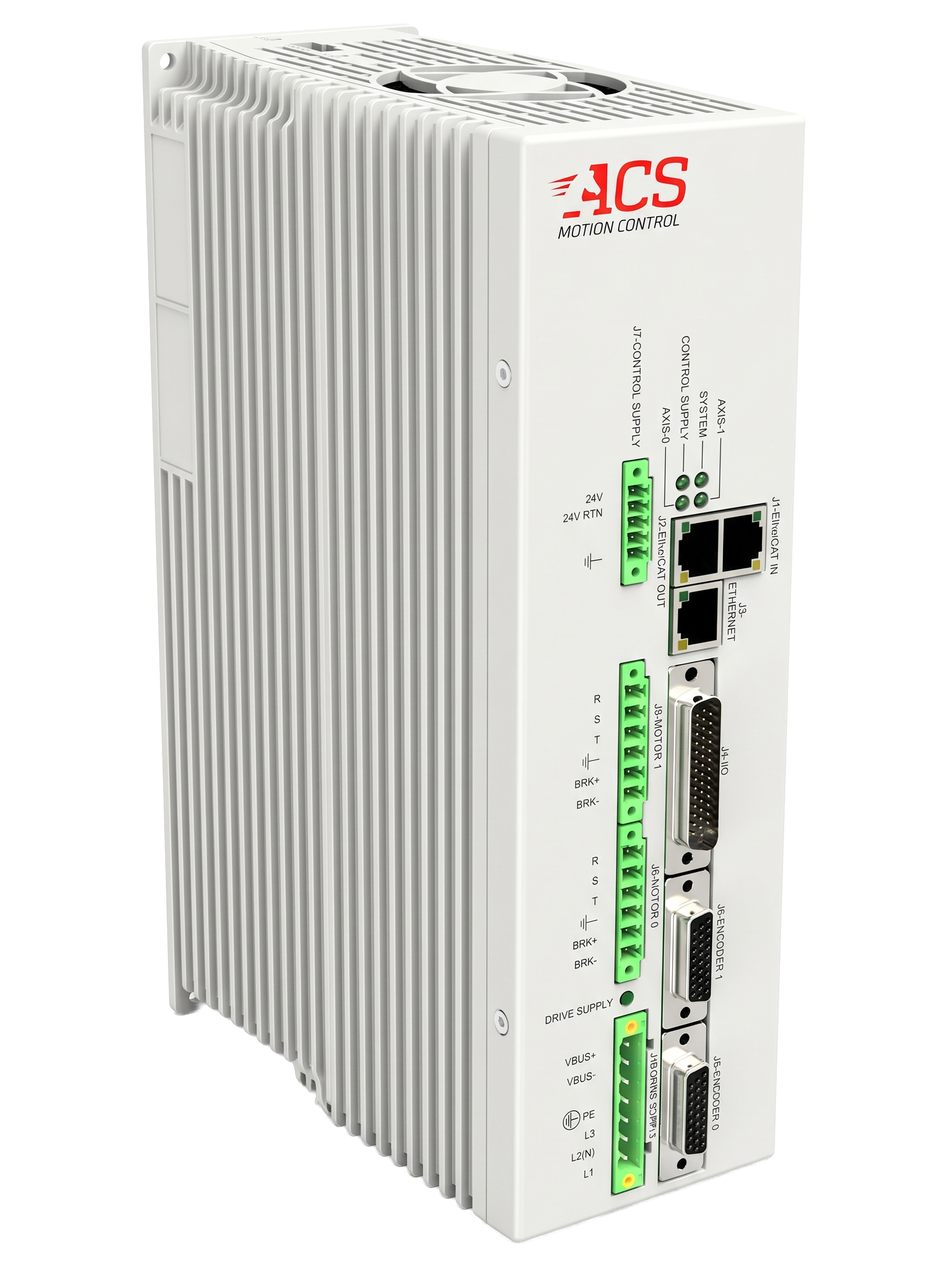

ECMac
1- or 2-Axis Motion Controller with Integrated AC Input Servo Drives
The ECMac is a compact, highly-integrated all-in-one motion controller and drive solution with AC input voltage designed for cost-sensitive OEM applications. Its unique multi-processor architecture leverages powerful control algorithms to achieve best-in-class motion system performance. At the same time, its flexible universal servo drive technology allows the system designer to control almost any type of motor or stage.
- Integrated control and drive solutions
- Engineered for medium-power precision stage control
- Compact form factor
- Advanced programming and position event generation
- Controller Axes: 1 or 2
- Host PC/PLC/PAC Communication: TCP/IP, Ethernet/IP, Modbus, RS-232
- Controller Cycle Rate: 1 kHz
- Drive Supply Input: 85-265 Vac (1- or 3-phase)
- Bus Voltage: Vin x 1.414
- Max Current Output Per Axis: 10/20 A
- Encoder Channels: 4 AqB, 2 SinCos, 2 Absolute
- Mounting Type: Panel
- Functional Safety Options: STO & SS1
Reduce application development effort with these and other ACS capabilities
Motion Profile Generation
Increase machine throughput & accuracy with advanced profile generation algorithms
Motion-to-Process Synchronization
Increase machine throughput and resolution with events and high-speed I/O synchronized to motion
SPiiPlus Platform
The Universal Control Platform for Precision Motion Systems
The SPiiPlus Platform is an EtherCAT-based control platform consisting of motion controllers, servo drives, interfaces, and I/O built to meet the needs of OEM engineering teams developing equipment with precision motion control systems.
