SinCos Encoder Compensation

Improve Accuracy with Adjustable SinCos Encoder Compensation

In ultra-high-resolution positioning applications, motion performance may be improved by optimizing the SinCos encoder amplitude, phase, and offset. Many ACS motion controller and drive solutions support this functionality along with software tools to simplify the optimization process.


Key Features and Benefits

  • Improve motion performance of stages using SinCos encoders
  • Optimize any SinCos encoder signal's gain, phase, and offset

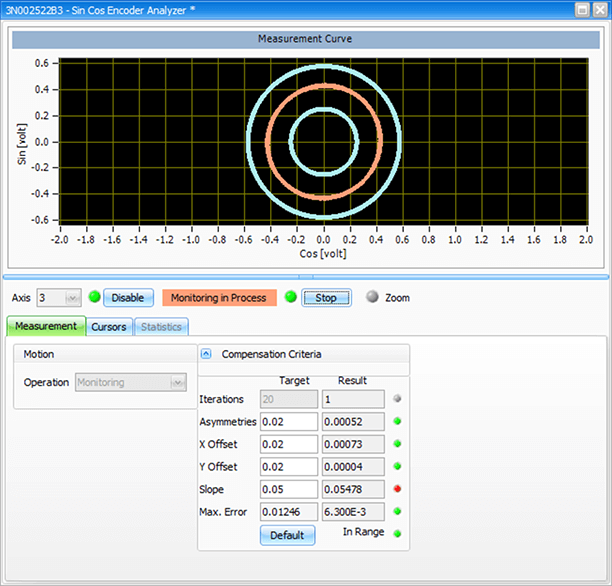

  • Streamlined configuration via MMI Application Studio's SinCos Encoder Compensation Tool
  • Monitor Lissajous in real time
