Laser Control

LCI

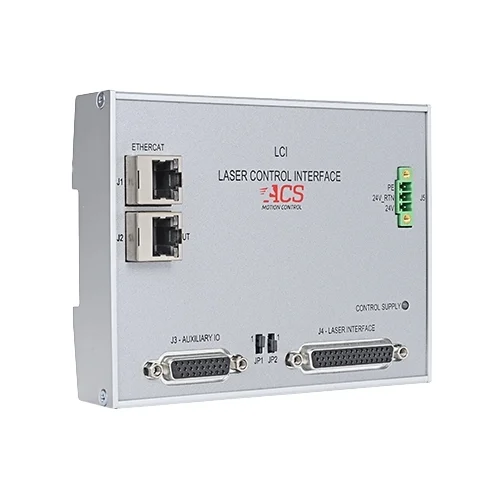

Laser Control Interface

The LCI is designed to meet the needs of laser processing system OEMs with demanding throughput and accuracy requirements. Working under any ACS SPiiPlus Platform EtherCAT master controller, the LCI tightly synchronizes control of a fixed beam laser with motion. Sub-microsecond latency enables high-accuracy laser micromachining, while high pulse frequencies bring high levels of throughput. Synchronize your laser and motion control with up to five axes.



Ask Our Experts Download Resources




Laser Control Modes

Position Based Triggering
  • Fixed Distance Pulsing
  • Segment-Based Gating
  • Coordinate Array Pulsing
  • Distance Array Gating
  • Coordinate Array Gating
  • Distance Array Gating
Combined Triggering Modes for Added Flexibility
  • Fixed Distance Pulsing AND Segment-Based Gating
  • Fixed Distance Pulsing AND Coordinate Array Gating
  • Other Possibilities
Velocity-Based Power Control
  • 3 power control output formats (PWM, Analog, 8 Bit Port)
  • Standard vector or user-defined velocity calculation
  • Analog inputs for power monitoring
  • Power control output(s) and laser triggering output can be activated simultaneously
Integrated Triggering and Power Control
  • Fixed Distance Pulsing with Dynamic Pulse Width
  • Segment-Based Gating and PWM Power Control
  • Coordinate Array Based Gating and PWM Power Control
  • Other Possibilities

Key Specifications

  • Logic Supply: 24 Vdc
  • Digital I/O: 8/8
  • Laser Control Signal Interface: RS422 differential or 5/24V Single Ended
  • Max Pulse Frequency: 16 MHz
  • Achievable Laser Pulse Accuracy: Sub-micron (stage and process dependent)
  • Dimensions (HxWxD): 134×75.4×31 (mm)
  • Download the datasheet for more information
