ECM Motion Controllers with Integrated Servo Drives

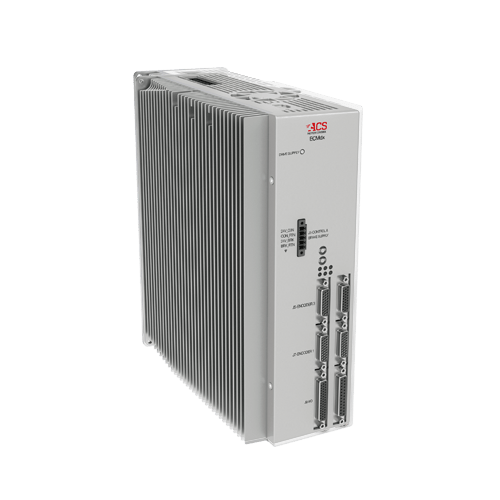

ECMdx
1 or 2 Axis Motion Controller with Integrated AC Input Servo Drives up to 15/30A
The ECMdx is a compact, highly integrated all-in-one motion controller and drives solution designed to meet the needs of OEMs with cost-sensitive multi-axis applications. Its unique multi-processor architecture leverages powerful control algorithms to achieve best-in-class motion system performance, while its universal servo drive technology provides the system designer flexibility to control most any type of motor or stage.
Key Specs and Capabilities
Key Specifications
- Controller and Drive Axes: 1 or 2
- Host PC/PLC/PAC Communication: TCP/IP, Ethernet/IP, Modbus, RS-232
- Controller Cycle Rate: 1kHz
- Drive Supply Input: 100 – 240Vac or 400Vac
- Bus Voltage: Vin x 1.414
- Max Current Output Per Axis: 15/30A
- Encoder Channels: 4 (AqB, Absolute, or SinCos)
- Mounting Type: Panel
- Functional Safety Options: STO & SS1
Key Capabilities
